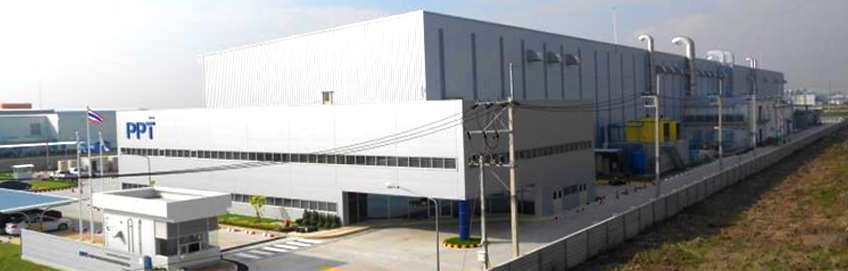

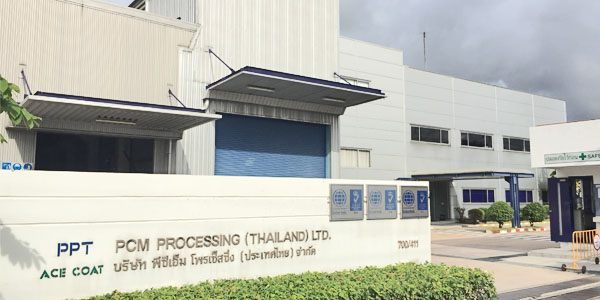

CCL factory

Spec of CCL

Raw material	GI,GL,EG
Thickness	0.2-1.2mm
Width	MAX.1350mm
I/D	508, 610mm
O/D	620mm-1,430mm
C/W	MAX 10MT
Capacity	6,000MT/month

Coil Center

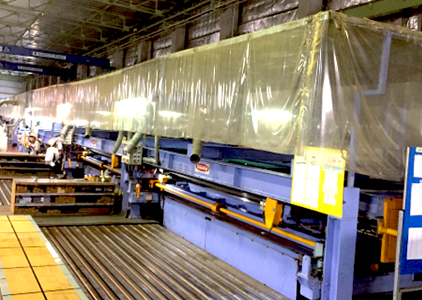

Levelers

	No.1 Slit Leveler	No.2 Slit Leveler	Sheet Slitter
Cutting method	Rotary shear	Drum shear	Arbor
Coil width	610～1,370mm	675～1,600mm	500～1,210mm
Coil width for center cut	min.700mm	min.800mm	-
Thickness	0.3～1.0mm	0.25～1.0mm	0.3～1.0mm
Cutting length	260～4,500mm	200～4,500mm	260～2,500mm
Slit width	-	-	90～1,200mm

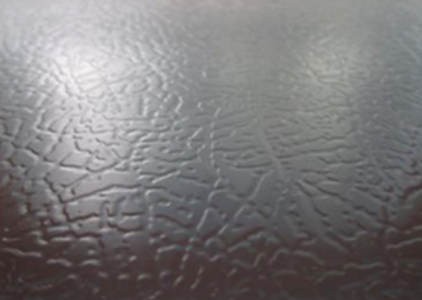

Emboss roll	o	-	-
Capacity	3,000MT/month		100MT/month

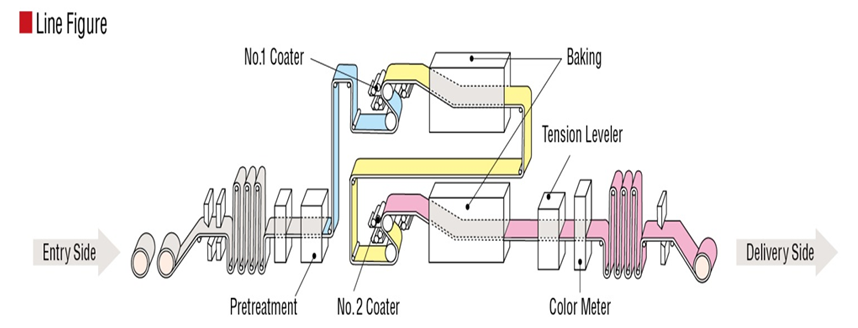

PROCESS of CCL
